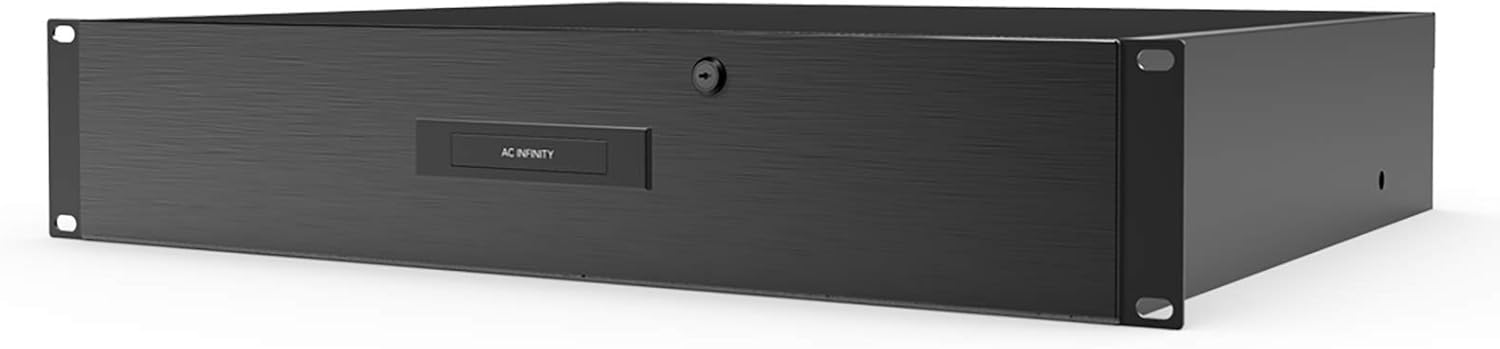

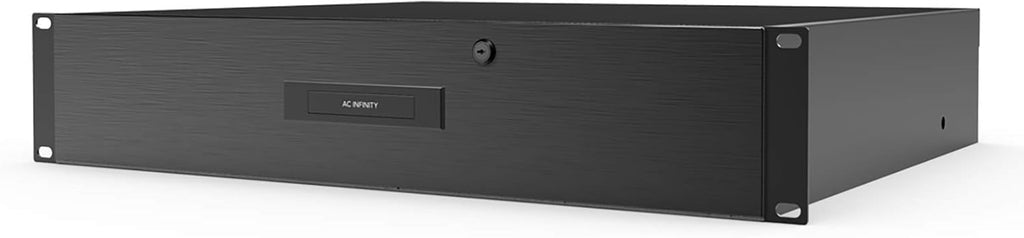

2U Rack Mount Drawer with Lock and Key for 19" Equipment Racks Z77586
Sale price
$14.99
Regular price $50.69
Skip to product information

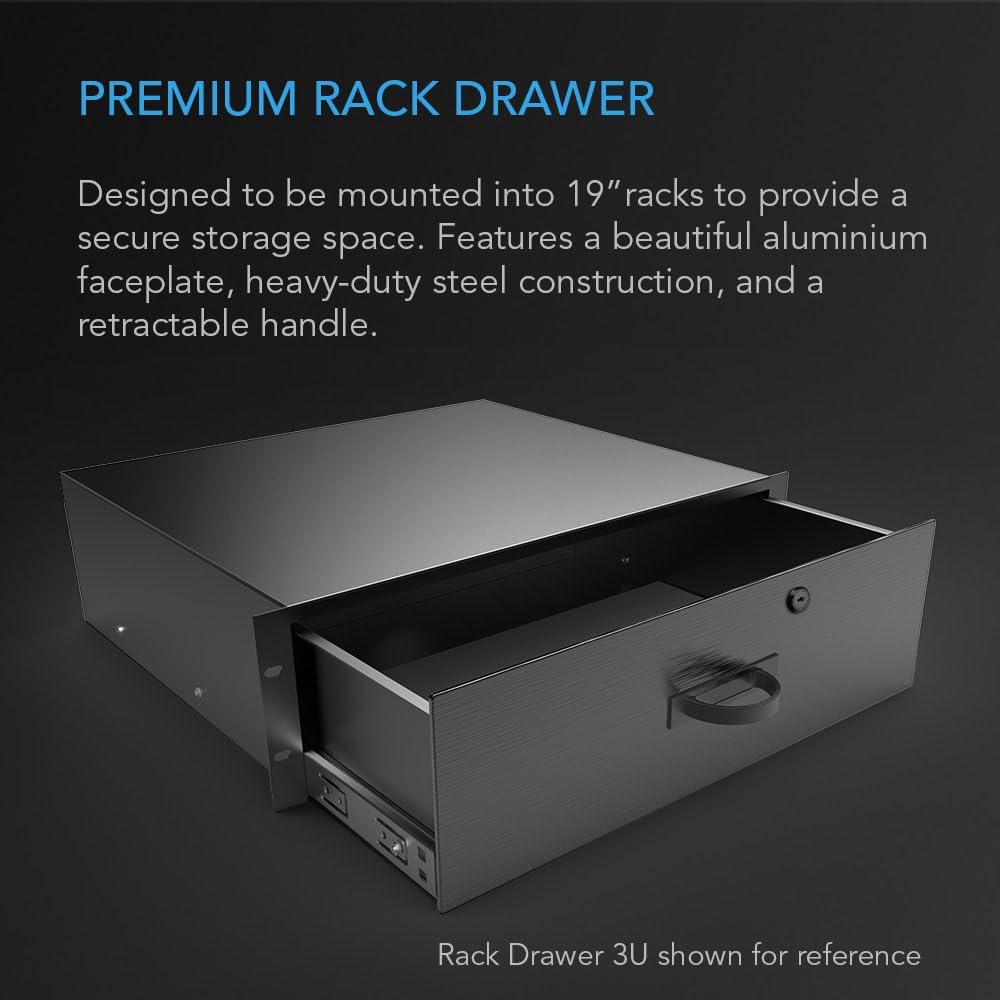

Designed to be mounted into any standard 19-inch rack to provide a secure storage space.

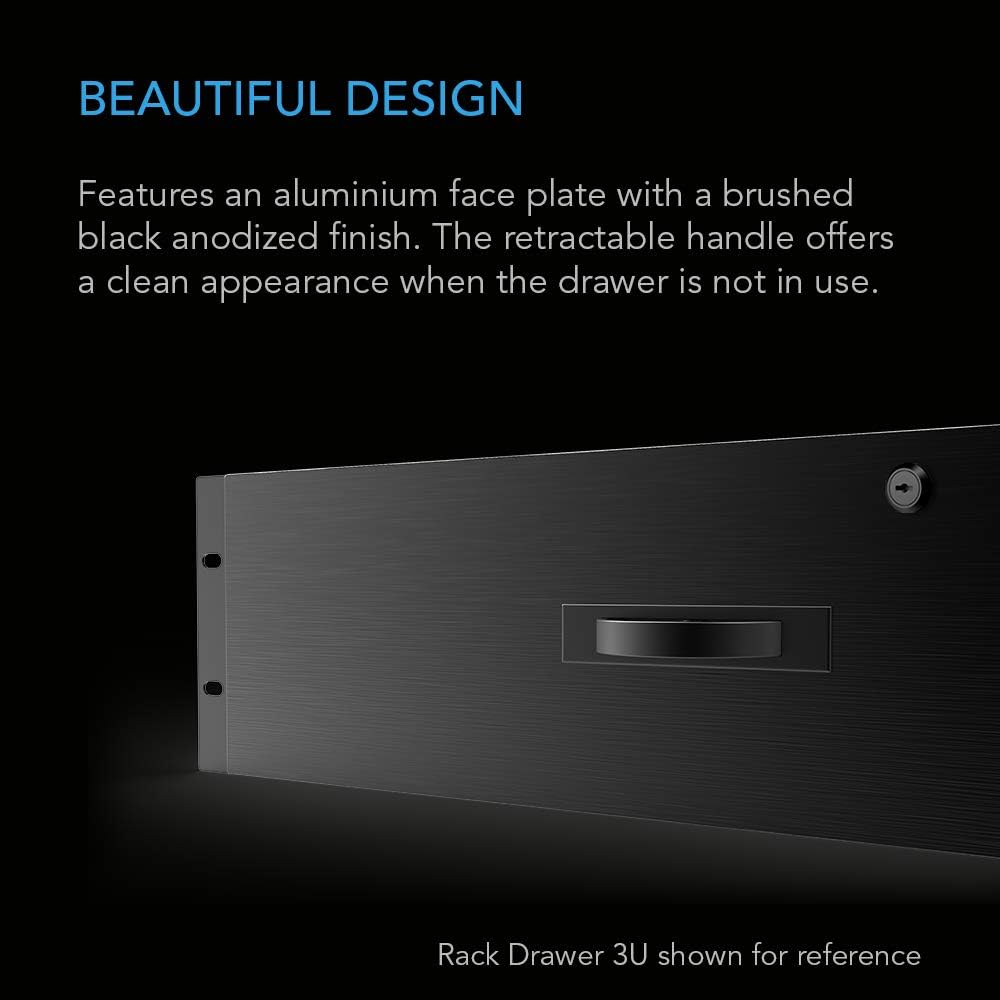

Features an aluminum faceplate, with an anodized brushed finish and CNC-machined detailing.

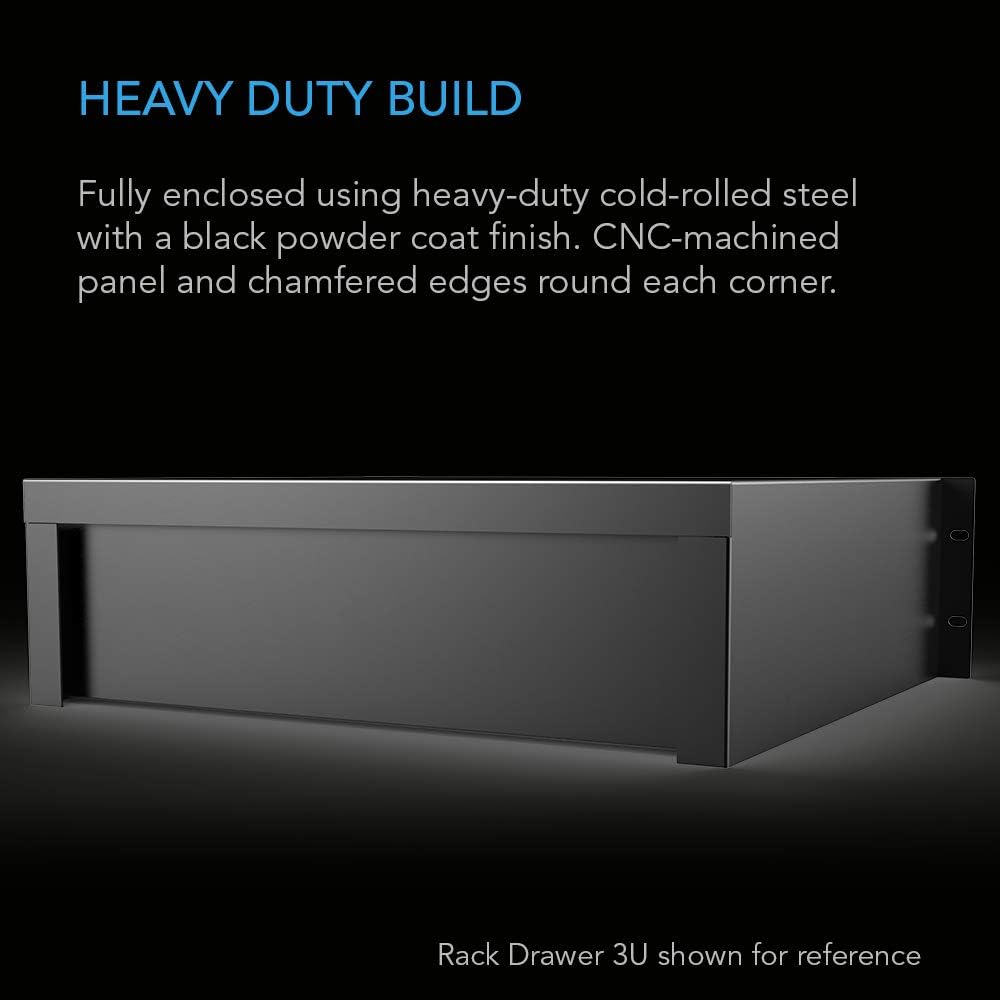

Fully enclosed using heavy-duty 2mm cold-rolled steel with chamfered edges for rounded corners.
Retractable drawer handle is concealed when not in-use for a clean and professional appearance.

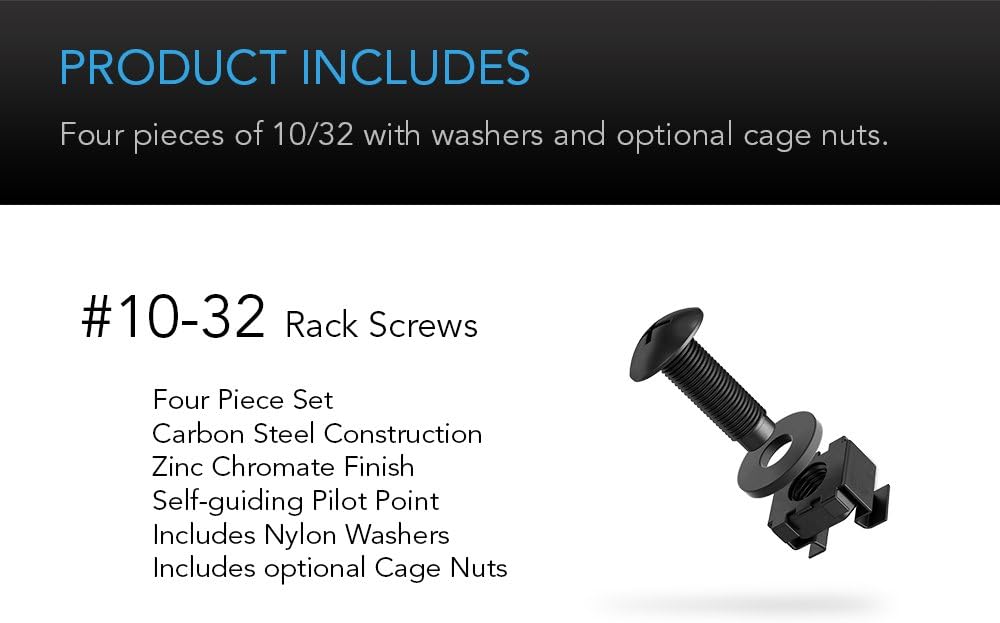

Takes up 2U of space. Includes mat, 10-32 screw set, lock, and keys.
2U Rack Mount Drawer with Lock and Key for 19" Equipment Racks Z77586
Sale price
$14.99
Regular price $50.69
Shipping calculated at checkout.
Features an aluminum faceplate, with an anodized brushed finish and CNC-machined detailing.
Fully enclosed using heavy-duty 2mm cold-rolled steel with chamfered edges for rounded corners.
Retractable drawer handle is concealed when not in-use for a clean and professional appearance.
Takes up 2U of space. Includes mat, 10-32 screw set, lock, and keys.

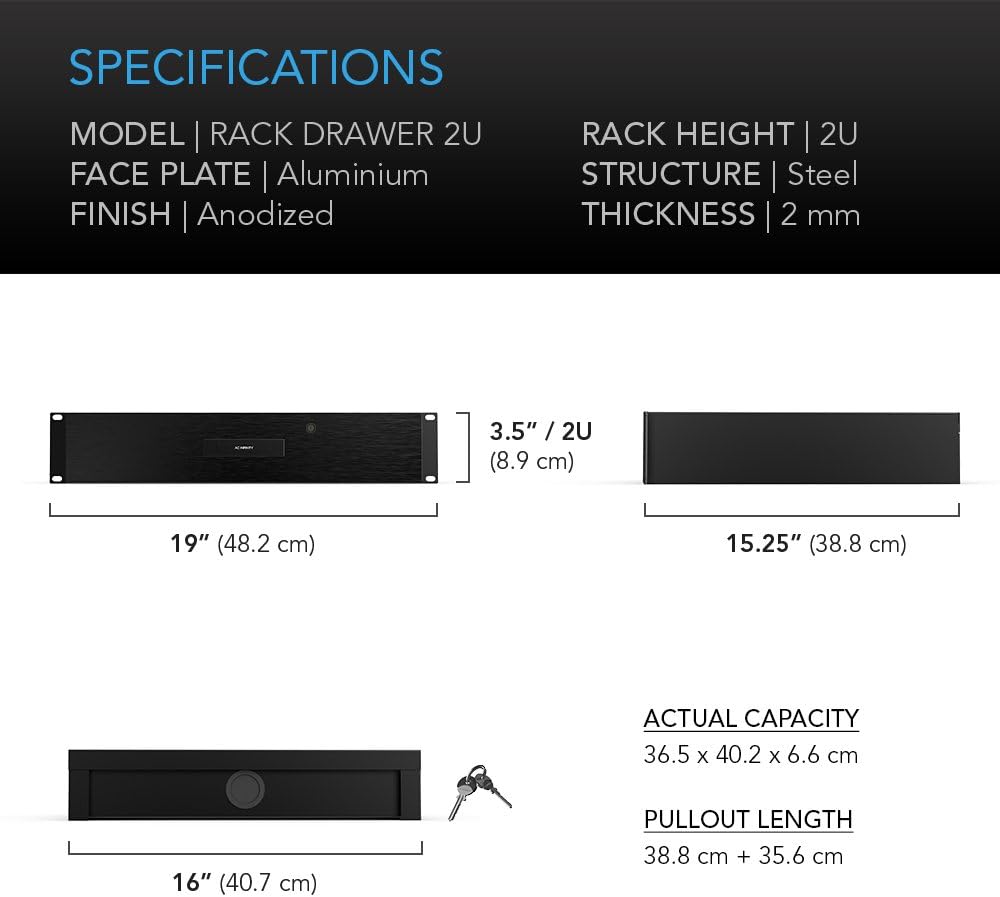

| AC Infinity, Premium Rack Drawer with Aluminum Faceplate, 1U | AC Infinity, Premium Rack Drawer with Aluminum Faceplate, 2U | AC Infinity, Premium Rack Drawer with Aluminum Faceplate, 3U | AC Infinity, Premium Rack Drawer with Aluminum Faceplate, 4U | AC Infinity, Premium Rack Drawer with Aluminum Faceplate, 5U | AC Infinity, Premium Rack Drawer with Aluminum Faceplate, 6U | |
|---|---|---|---|---|---|---|
| Model | AC-RDA1 | AC-RDA2 | AC-RDA3 | AC-RDA4 | AC-RDA5 | AC-RDA6 |
| Rack Height | 1U | 2U | 3U | 4U | 5U | 6U |
| Dimensions | 19 x 15.25 x 1.75 in. | 19 x 15.25 x 3.5 in. | 19 x 15.25 x 5.25 in. | 19 x 15.25 x 7.0 in. | 19 x 15.25 x 8.75 in. | 19 x 15.25 x 10.5 in. |
| Usable Height Capacity | 0.8 in. (2.1 cm) | 2.6 in. (6.6 cm) | 4.3 in. (11.0 cm) | 6.1 in. (15.5 cm) | 7.8 in. (19.9 cm) | 9.6 in. (24.3 cm) |
| Usable Width Capacity | 15.8 in. (40.2 cm) | 15.8 in. (40.2 cm) | 15.8 in. (40.2 cm) | 15.8 in. (40.2 cm) | 15.8 in. (40.2 cm) | 15.8 in. (40.2 cm) |
| Usable Depth Capacity | 14.4 in. (36.5 cm) | 14.4 in. (36.5 cm) | 14.4 in. (36.5 cm) | 14.4 in. (36.5 cm) | 14.4 in. (36.5 cm) | 14.4 in. (36.5 cm) |
| Drawer Depth Plus Max Pull-Out Length | 15.25 + 14.0 in. (38.7 + 35.6 cm) | 15.25 + 14.0 in. (38.7 + 35.6 cm) | 15.25 + 14.0 in. (38.7 + 35.6 cm) | 15.25 + 14.0 in. (38.7 + 35.6 cm) | 15.25 + 14.0 in. (38.7 + 35.6 cm) | 15.25 + 14.0 in. (38.7 + 35.6 cm) |
| Anodized Aluminium Face Plate with Concealed Handle Design | ||||||
| Heavy-Duty 2mm Cold-Rolled Steel Enclosure | ||||||
| Includes Grommet, Drawer Mat, and Rack Mounting Screw Set |
