HDMI Extender Over Fiber Optic Cable, 1080P, 1 Transmitter and 1 Receiver X436343
HDMI Extender Over Fiber Optic Cable, 1080P, 1 Transmitter and 1 Receiver X436343

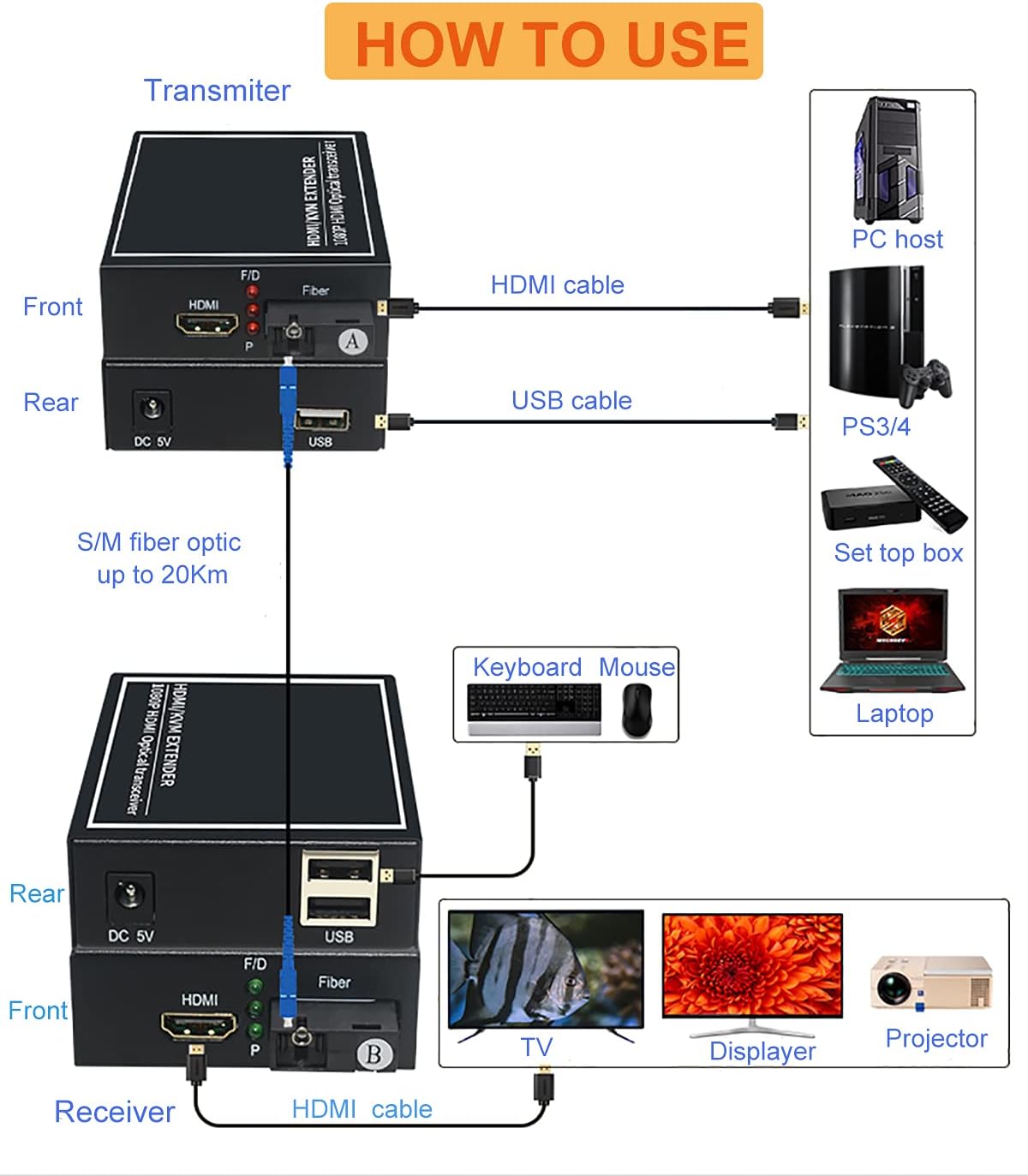

[Function]Extend HDMI signals up to 12.4miles(20Km) over a Single-mode Fiber optic cable, With KVM function (USB port), for remote control by mouse and keyboard. Support Video resolution up to 1920x1080P@60Hz and compatible with backward.
[Universal for Fiber Types]Mainly use with Single-mode fiber optic 0-20Km.it is also compatible with Multimode fiber 0-300meters. Fiber connector: SC.

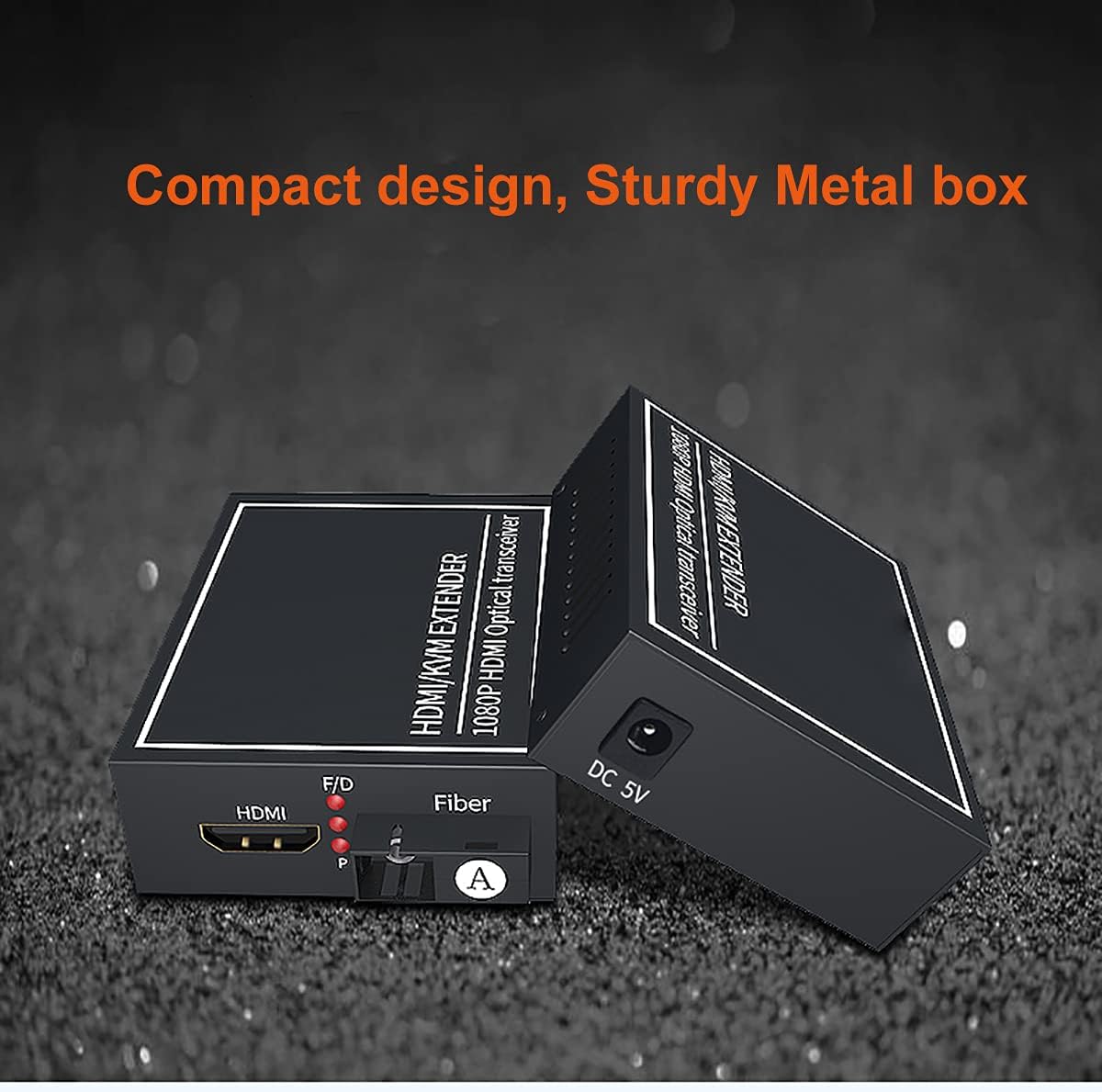

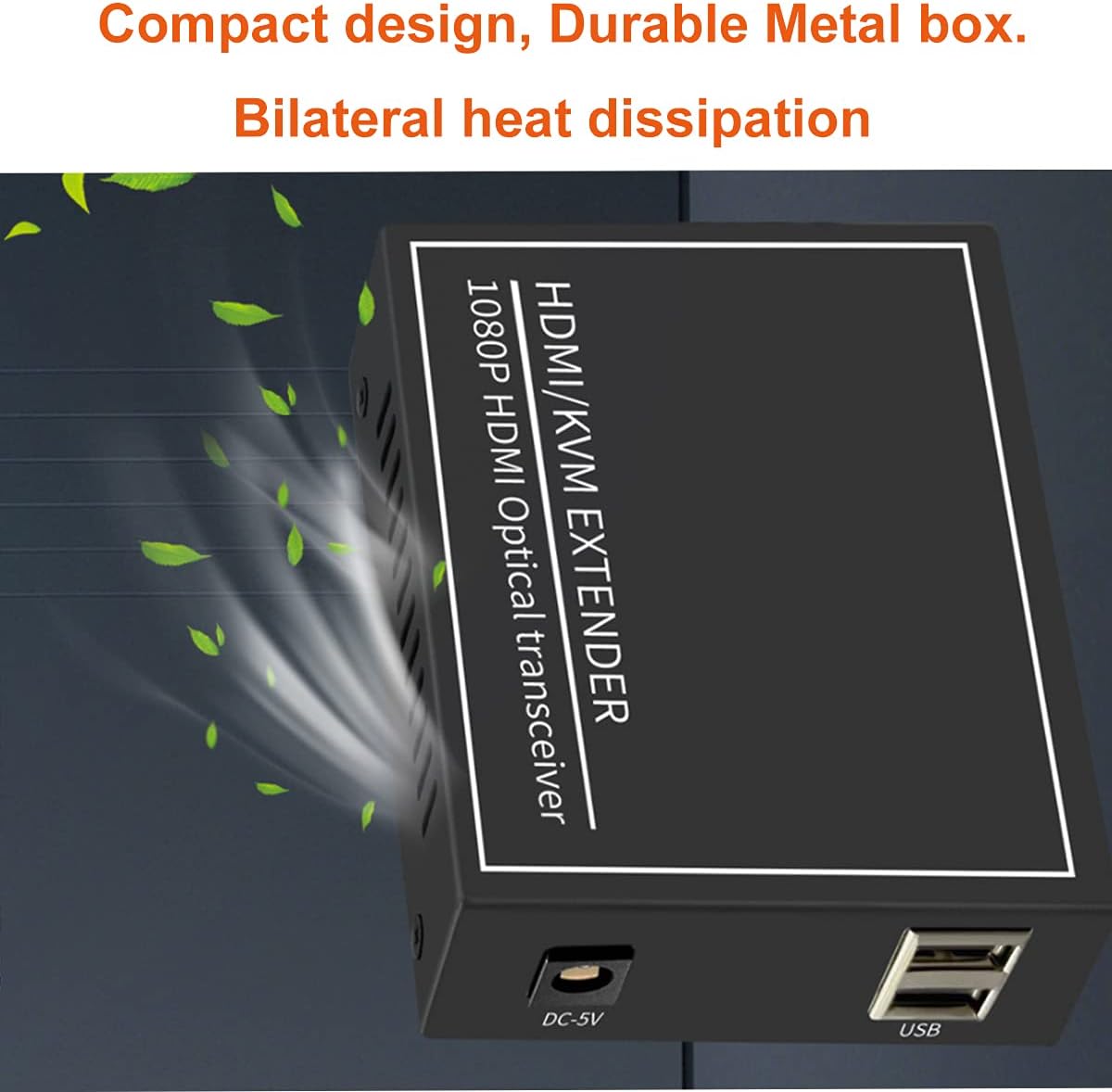

[Wide Applications] Compact design, Durable Metal. Bilateral heat dissipation. LED lights. Widely used in extending Ultra-HD sources such as Blu-Ray players, game consoles, PCs and other HDMI sources to distant monitors, displays, TVs, and more.
[Why use Fiber Optic]With our HDMI over Fiber Optic extender you can get faster speeds, less signal degradation, longer distance data transfer, better reliability, and more flexibility. Using a fiber optic cable can decrease costs over time because of the durability and reliability of the fiber cables. Fiber optic cables carry a low rate of bit error due to the fiber being highly resistant to electromagnetic interference.

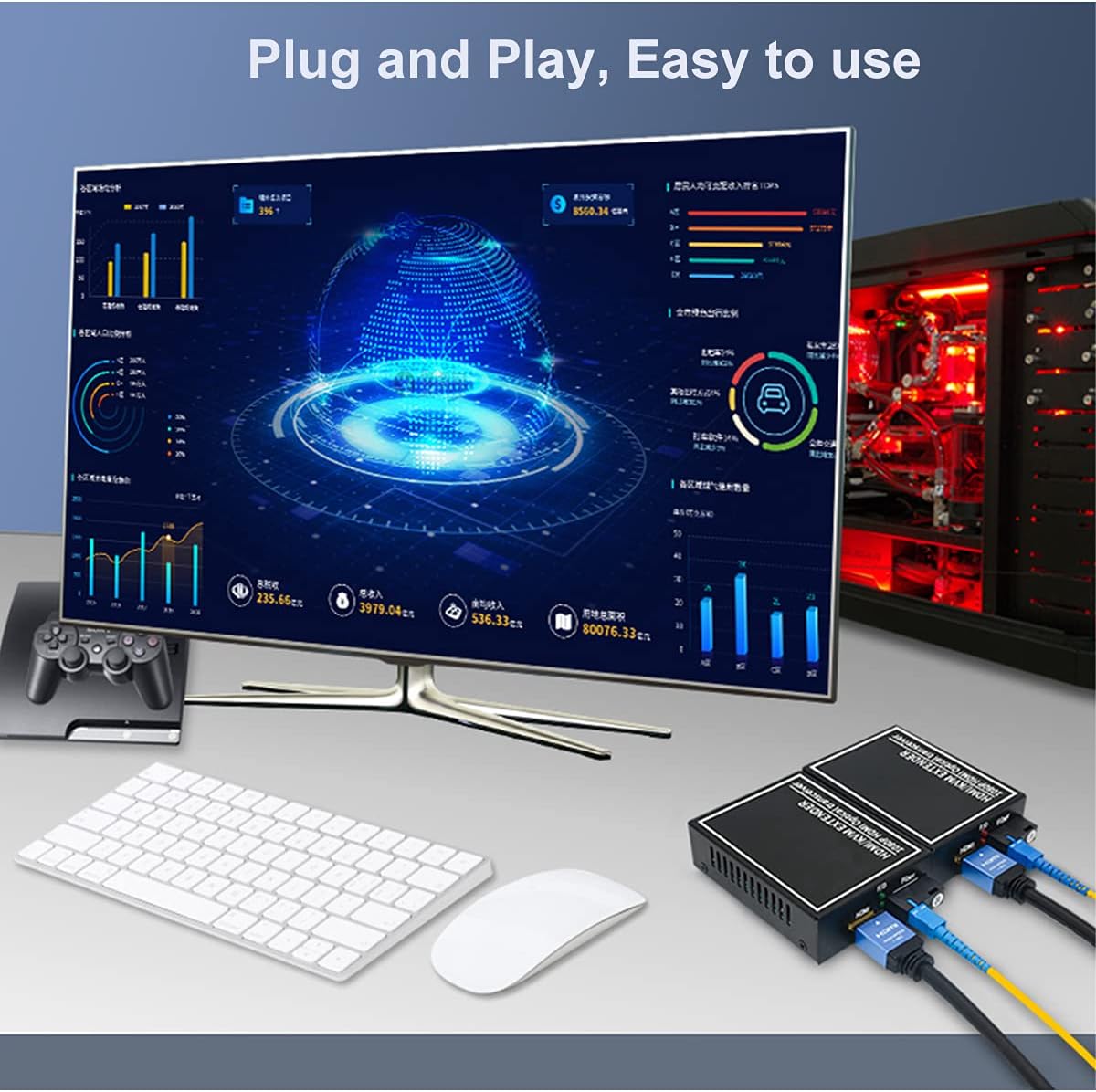

[Plug and Play]Plug and Play, No setup or configuration needed, Easy to use.

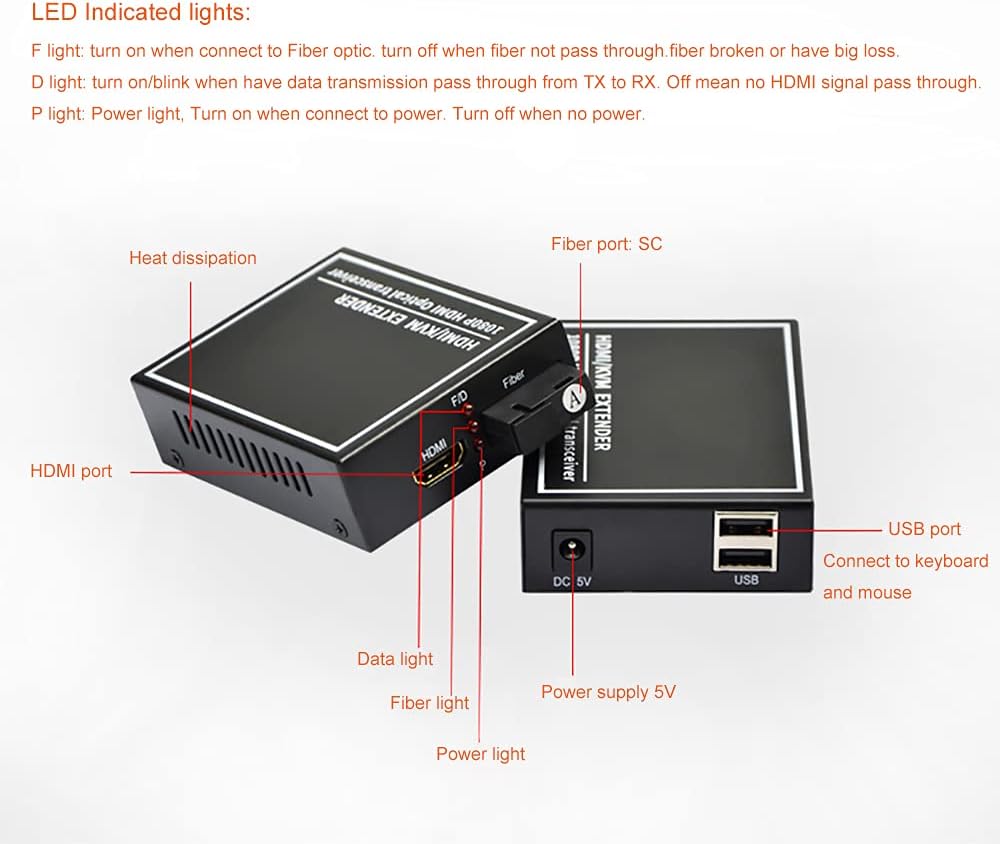

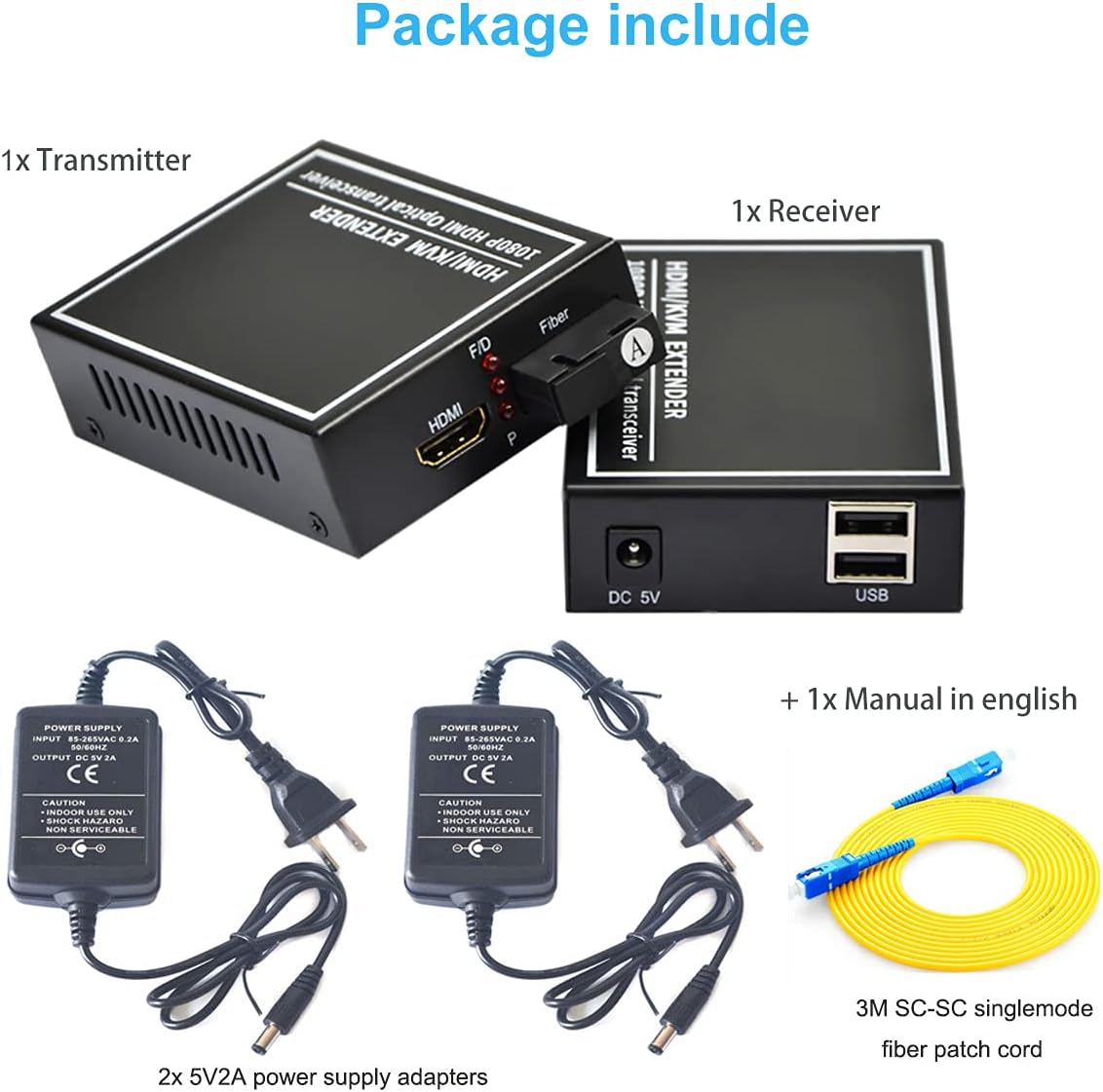

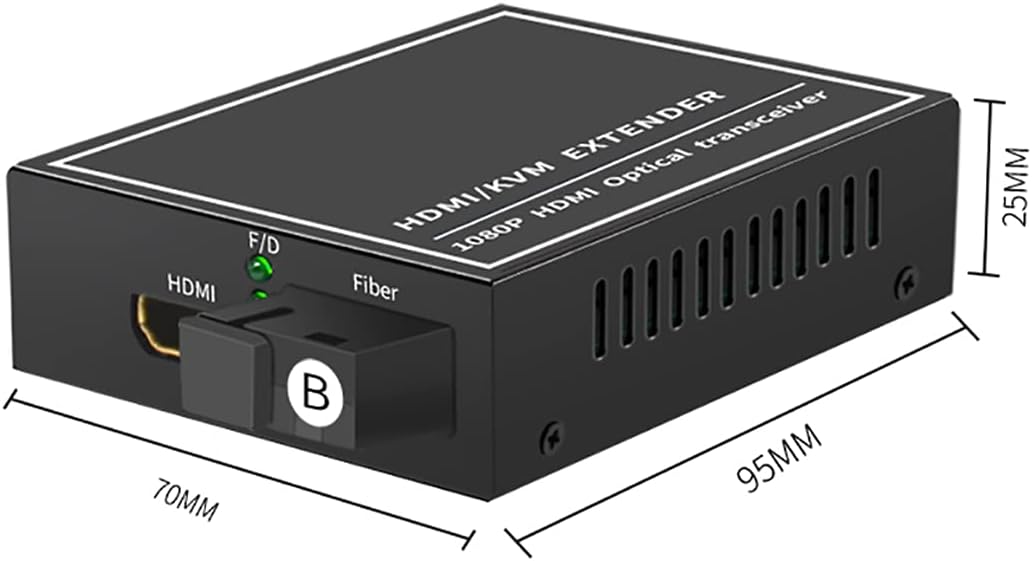

Specification: 1.Fiber interface: SC 2.Wavelength: Single-mode 1310/1550µm (9/125µm), Multimode 850µm (50/125µm), 1310µm (62.5/125µm). 3. support protocol: HDMI1.3, HDCP1.2. 4. The usual time between failures (MTBF) greater than 100,000 hours. 5. Size: 94x70x28mm (LxWxH mm). 6. Working voltage: AC100-240V,DC5V2A, with US standard plug. LED Indicated lights: F light: turn on when connect to Fiber optic. turn off when fiber not pass through.fiber broken or have big loss. D light: turn on/blink when have data transmission pass through from TX to RX. Off mean no HDMI signal pass through. P light: Power light, Turn on when connect to power. Turn off when no power. Package include: 1x HDMI to Fiber Transmitter 1x HDMI to Fiber Receiver 1x 3m SC-SC Singlemode fiber patch cord 2 x US Power supply adapters. 1 x User manual
